ILF vs. Formula: The 1.5-Inch Dovetail Gap Behind the Choice
A recurve riser talks to its limb through exactly one joint — a dovetail, cut one of two ways in this sport. Get it right, and you can swap brands for the next twenty years. Get it wrong, and you've quietly signed up for one company's catalog without reading the fine print. Here's what the dovetail itself says, not the sales copy stapled to it.
ILF (International Limb Fitting) is the open dovetail-and-bolt connection most recurve makers build to roughly the same dimensions — buy a riser from one brand, and limbs from a totally different one usually just fit. Formula is Hoyt's own take on the same idea, cut to a longer dovetail: one independent measurement puts it at roughly 5 inches of engagement against ILF's roughly 3.5. Different geometry, full stop — it won't seat in an ILF pocket, and ILF limbs won't seat in it. Formula risers come in 25- and 27-inch target lengths, nothing shorter. ILF runs from 17-inch hunting risers all the way up to full Olympic length. Own a Formula riser, and your limb options run through Hoyt. Own ILF, and dozens of manufacturers are on the table. Everything below is one of those two facts, unpacked.
What's the Real Difference Between ILF and Formula?
Strip the marketing off both camps and you're left with the table below. That's the whole comparison — every section after this is one row, explained.
| Attribute | ILF (International Limb Fitting) | Hoyt Formula |
|---|---|---|
| Dovetail engagement length | ~3.5 in, industry convention | ~5 in, reported — roughly 1.5 in longer |
| Cross-brand compatibility | Broad — dozens of makers build to it | None — Formula limbs are almost entirely Hoyt's own |
| Riser lengths sold | 17 in through 27 in+, hunting to target | 25 in and 27 in target lengths only |
| Governing spec | No single published standard — a shared convention | Hoyt's own design, filed under US patent |
| Dampener/stabilizer bushing location | On the riser | Built into the limb itself |
| Best fit for bowhunting/barebow | Yes — nearly the only option under 23 in | Not sold in hunting-length risers |
| Secondhand limb availability | Wide — used ILF limbs turn up from many brands | Narrow — limited to Hoyt's own Formula catalog |

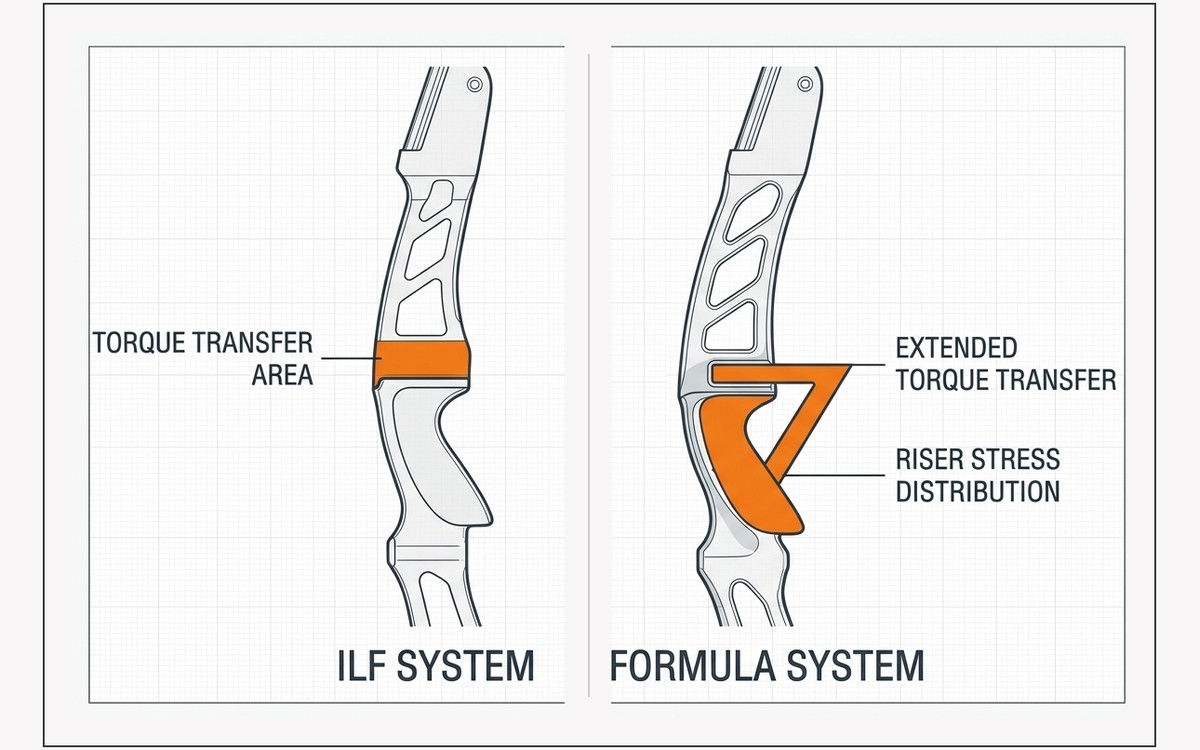

Core Insight: Every difference here traces back to one number: about an inch and a half of extra dovetail on Formula's side. That's it. That single dimension is why Formula skips hunting lengths entirely, why its limb catalog is one brand deep, and why switching later means a new riser, not just a new limb.
ILF
Ideal For: Bowhunters and barebow shooters who need a short riser, anyone who wants to mix limbs and risers across brands over time, and archers building a first recurve who don't want to commit to one manufacturer's catalog before they know what they like.
Formula
Ideal For: An Olympic-style target archer already inside Hoyt's ecosystem who wants a matched riser-and-limb pairing from one manufacturer and doesn't mind the fitting choice deciding every future limb purchase for them.
Which Fitting Actually Fits Your Setup?
Pick the riser length you're actually shopping for, what you mainly shoot, and how much cross-brand flexibility matters to you. The score below weights all three the way the sections above and below explain — it's a planning heuristic, not a rulebook.
How does the Fit Calculator score work?
The score is a weighted composite built from three real, verifiable constraints rather than a physics simulation of limb performance: riser length carries the most weight, since Formula simply isn't manufactured under 25 inches — picking a hunting-length riser pushes the score toward ILF almost by default. Primary use adds a secondary lean: bowhunting and barebow both weight toward ILF because that's where the short-riser catalog lives, while target recurve pulls slightly toward Formula since that's the one niche it was actually built for. Cross-brand flexibility is your own stated preference, weighted heavily in either direction, because it's the one variable in this whole comparison that's about you rather than the hardware. Scores are clamped to an 8–92% range so the bar never reads as a false absolute.
The availability note below the bar isn't part of the weighted score — it's a hard fact check. Pick a 17-, 19- or 21-inch riser and it will tell you plainly that Formula isn't sold at that length at all, regardless of what the other two inputs say.

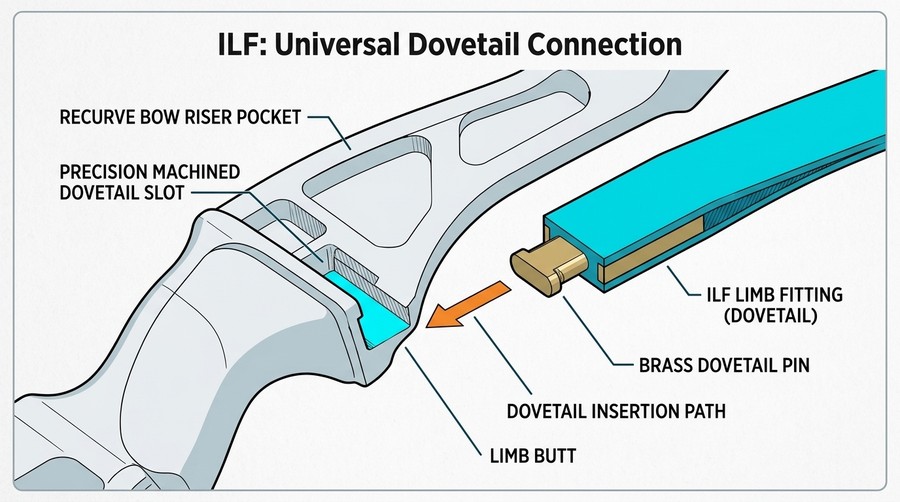

What Is ILF, and Why Did It Take Over Recurve Archery?
ILF traces back to a Hoyt design from the 1980s. The patent lapsed. Other manufacturers started cutting risers and limbs to roughly the same dovetail dimensions, and the fitting spread the way a good default always spreads — not by committee vote, but because it was already sitting there, unencumbered, right when everyone else needed a riser-to-limb joint that worked.
Here's what surprises new recurve shooters: nobody's actually signed a spec sheet. ILF is a shared convention, not a certified standard — exactly the argument buried inside a long ArcheryTalk thread on writing an actual ILF standard, which, true to its own title, produced more disagreement than agreement. Tolerance stacking between specific brand pairings is real enough that shooters keep comparing notes on which risers and limbs seat tightest, a conversation that's been running for years across a TradTalk thread cataloguing ILF bowyers and manufacturers.
What that openness buys you is real. Archery360's own rundown of ILF bows lists riser lengths from short hunting builds clear up through full 25-inch target risers — one dovetail, every use case covered. No single manufacturer has to build for everybody, because it isn't building alone.

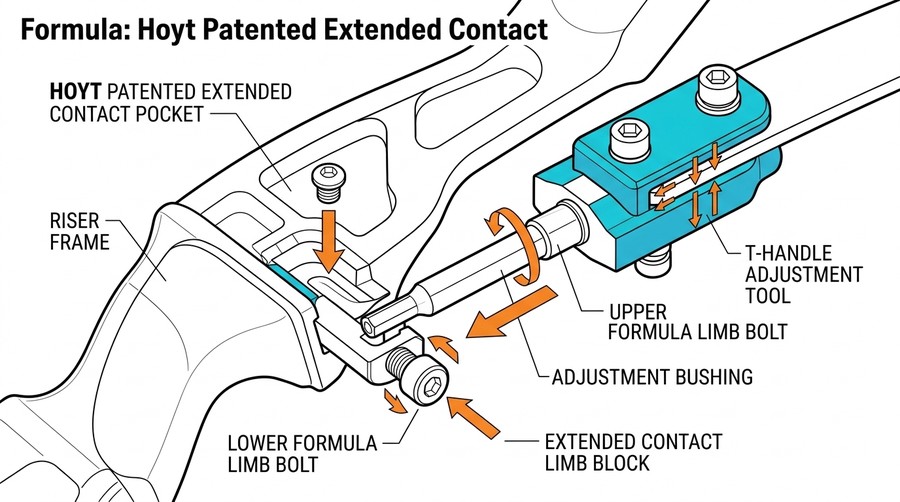

What Is Hoyt's Formula System, and How Is the Pocket Actually Different?
Formula showed up on Hoyt's Formula-branded risers — Faktor, Prodigy, Xceed, the rest — starting in the early 2010s. From three feet away, a Formula pocket and an ILF pocket look like the same idea. They're not. Slide a Formula limb toward an ILF pocket and it stops short of seating every time; the geometry just runs longer.
Hoyt's own rationale, laid out in its US patent filing on the limb adjustment system, comes down to a longer moment arm changing how limb-root stress gets distributed under load. That holds up mechanically — a longer engagement spreads a bending load over more contact area, the same reason a longer bolt pattern out-resists torque against a short one. Formula also relocated the stabilizer/dampener bushing off the riser and onto the limb itself, confirmed by a side-by-side comparison of Grand Prix (ILF) and Formula limb attachment points.
What Formula didn't do is open the design up. Every current retail listing for a Formula riser — the Hoyt Prodigy RX in 25 and 27 inches among them — sells exclusively in 25- or 27-inch target lengths. There's no Formula equivalent of a 17-inch hunting riser, because Hoyt hasn't built one, and because the fitting's own patent keeps third-party limb makers from filling that gap the way they did for ILF decades ago.
Avoid If: you're shopping by model name alone. Hoyt runs the same limb family through both fittings — the Axia is listed as a Grand Prix (ILF) limb in one retail listing and as a separate Formula-fit limb in another, with the core model name identical in both. It comes up often enough as its own confusion that ArcheryTalk has a thread just for sorting out which is which. Read the fitting word in the title, not just the model name — a Grand Prix Axia and a Formula Axia will not seat in the same riser.
How Do the Two Systems Compare on Paper?
The table above covers the headline differences. This one goes a level deeper into the mechanical and practical detail that the FAQ and forum threads keep coming back to.
| Criteria | ILF | Formula |
|---|---|---|
| Riser-to-limb contact area | Standard dovetail, ~3.5 in engagement | Extended dovetail, ~5 in engagement (reported) |
| Manufacturer ecosystem | Open — dozens of riser and limb makers | Closed — Hoyt's own catalog, patent-protected |
| Reported shot profile | Varies widely by limb tier and material | Marketed as smoother/more stable; independent comparisons find the gap narrows at matched limb tiers |
| Short-riser (bowhunting) availability | Wide — 17 in and 19 in risers common | None — not manufactured under 25 in |
| Tiller/tuning sensitivity | Standard bolt adjustment, same across brands | Same bolt-adjustment principle, limb-mounted dampener bushing changes accessory placement |
| Cross-compatibility | Limbs and risers mix across most brands | Effectively none outside Hoyt's own Formula line |
Does Formula Actually Feel Stiffer or Smoother at Full Draw?
Here's my honest read as an engineer, not as someone reciting Hoyt's own copy: a longer dovetail does reduce limb-root flex under identical load. Same reason a longer clamped joint out-resists rotation versus a short one in any bolted assembly. That part checks out.
Where it falls apart is the leap to "Formula shoots smoother," full stop. Felt stiffness lives in the limb — World Archery's own equipment rundown names laminated carbon and carbon-foam lay-ups as the modern standard, bamboo cores still common — not the dovetail it bolts into. Put a well-built ILF limb against an entry-tier Formula limb and you're grading limb quality, not fitting geometry. Two long-running threads, ArcheryTalk's "Hoyt ILF vs. Formula" and TradTalk's own thread on the same question, land in the same place: real, opinionated shooters, split down the middle, plenty of them admitting they couldn't call it blind.
My take: the dovetail length is real engineering, not marketing spin — but it's a second-order effect behind limb material, tiller setup, and the archer's own form. I wouldn't buy into a closed ecosystem on the stiffness argument alone. Not for an inch and a half.
Which System Actually Matters for Bowhunters and Barebow Shooters?
This is the one place the comparison isn't close. A hunting or barebow setup wants short, light, well-balanced — commonly 17 to 21 inches — and that whole size class runs on ILF, almost exclusively. Formula's catalog stops at 25 inches. That's a target length, not a tree-stand length.
For this group it's barely a decision. Put a short riser on your requirements list and Formula was never in the running — no matter what a glossy product page leaves unsaid.
Can You Mix ILF and Formula, or Switch Between Them Later?
No. Sit with that before you buy your first Formula riser. The two dovetails aren't close enough to force together — a Formula limb won't seat in an ILF pocket, full stop, and the reverse is just as true. Switch later and you're replacing a riser, not swapping a limb. And because Formula limbs come from exactly one manufacturer, the used market for them is a fraction as deep as the secondhand ILF listings pouring in from a dozen brands at once.
That's the real cost of the fitting choice. It has nothing to do with how either one shoots.
What Do ILF and Formula Owners Actually Say About Each Other's Fitting?
Aggregated sentiment from ArcheryTalk, TradTalk and Archery Interchange threads on this exact question: ILF owners keep coming back to brand flexibility and used-market depth as the reason Formula never gets serious consideration, even from shooters who otherwise like Hoyt's risers. Formula owners tend to flip the script — the closed ecosystem is the feature, not the bug: one engineering team building both halves of the joint, at the cost of every future limb purchase running through that same catalog.
Top praised feature: In ArcheryTalk's "ILF vs. Formula Pros and Cons" thread, Formula owners circle back to one thing most often: a perceived drop in limb twist and torque at full draw. That's the reason they stayed.
Common friction point: Limb-selection lock-in surfaces in nearly every thread on this topic, including Archery Interchange's dedicated ILF-vs-Formula discussion. The pattern repeats: shooters commit to Formula, their draw weight or form shifts enough to want a different limb, and only then do they miss ILF's open market.
Frequently Asked Questions
What does ILF actually stand for, and what does it mean for buying a recurve bow?
International Limb Fitting — a dovetail-and-bolt connection most recurve makers cut to the same rough dimensions. Practically speaking: you can mix brands freely and swap limbs later without buying a new riser.
What is Hoyt's Formula system, and why doesn't it use standard ILF limbs?
It's Hoyt's own fitting, cut to a longer dovetail than ILF — one measurement puts it at roughly 5 inches of engagement against ILF's 3.5. That extra length changes the pocket enough that a Formula limb won't seat in an ILF riser, or the other way around, even though both are dovetail-and-bolt designs at heart.
Can I put Formula limbs on an ILF riser, or ILF limbs on a Formula riser?
No. Different dovetail lengths, no forcing it. Own a Formula riser and your limb options are Formula-fit, almost entirely Hoyt's own; own an ILF riser and dozens of manufacturers are open to you.
Is Formula actually stiffer or more accurate than ILF, or is that mostly marketing?
The engineering logic is sound — a longer moment arm does spread limb stress more evenly. But match limb tiers and the gap mostly closes, and long-running forum threads keep landing on the same verdict: credit the limb, not the fitting.
Which fitting should a bowhunter or barebow shooter actually choose?
ILF, almost every time. Hunting and barebow risers in the 17-to-21-inch range are built almost exclusively on it; Formula tops out at 25 and 27 inches — target lengths that were never built for a tree stand or a stalk.
Why don't more companies make Formula-fit limbs?
It's patent-protected, and Hoyt hasn't licensed it out the way the ILF dovetail became a shared standard decades ago once its own patent lapsed. Result: the Formula limb catalog is Hoyt's, full stop.
Is ILF an officially written standard, or does fit vary between brands?
No single spec sheet exists — it's a shared convention, not a certified standard, and archers on ArcheryTalk and TradTalk have spent years comparing notes on which brand pairings seat tightest. Most modern combinations fit closely enough to shoot; a little tolerance stacking between specific pairings isn't unheard of.
Does World Archery competition allow both ILF and Formula risers?
Yes. World Archery's equipment rules govern draw weight, sights, and stabilizers — not the riser-to-limb fitting mechanism. Olympic-style archers compete on both ILF and Formula risers with zero rules conflict.
Shooting a brand pairing that seated tighter or looser than the numbers above, or have a correction on a spec we got wrong? Send it through the contact page — corrections get the page changed.
Our take: ILF wins on pure optionality. More risers, more limbs, more lengths, and a limb market that doesn't dry up the moment one company changes its lineup. Formula's longer dovetail is real engineering, not an empty claim — but it solves a margin problem (limb-root flex under load) by asking you to commit to one manufacturer's catalog for as long as you own that riser. If it were my next riser, I'd still reach for ILF. Not because Formula's a lesser fitting — it isn't — but because I don't like tying my next decade of limb purchases to one company's roadmap.
👉 Recommendation: a bowhunter or barebow shooter should treat this as effectively decided — Formula isn't sold in a size that fits the job. A target archer already deep in Hoyt's ecosystem, buying a riser they intend to keep for years, is the one case where Formula's tradeoff is worth weighing seriously rather than defaulting to ILF.
