How to Cut Carbon Arrows Without Cracking the Shaft
If you buy through our links, we may earn a commission that helps support the work we do. Learn more.
- Cut with a dedicated abrasive cutoff wheel — never a toothed hacksaw or a pipe/tubing cutter. Easton's own arrow-assembly documentation rules both of those out by name; a hacksaw tears fiber instead of shearing it, and a pipe cutter's pinching wheel crushes the wall.
- Wear a NIOSH-rated dust mask and safety glasses every time, no exceptions. Cutting throws off fine carbon and resin dust; a fitted respirator under OSHA's 29 CFR 1910.134 respiratory protection standard is a more realistic baseline than the paper mask a lot of home cutting jigs ship with.
- Square the face before you bond anything to it. An off-axis cut seats the point or insert crooked in a way you won't see until your groups open up downrange.
- Clean the shaft with 91%-or-higher isopropyl alcohol only. Acetone, MEK and lacquer thinner are flagged directly in Easton's assembly guide as solvents that can pool inside the shaft and compromise the bond.
Cut a carbon arrow shaft with a dedicated abrasive cutoff wheel, not a toothed hacksaw and never a pipe or tubing cutter — the wheel grinds through the fiber-and-resin wall cleanly, while the other two tear or crush it. Easton's own assembly documentation calls for a NIOSH-approved dust mask, a cut that goes about a third of the way through before you rotate the shaft to finish it square, a 91%-or-higher isopropyl alcohol wipe-down (never acetone), and a two-part epoxy bond on the insert — never hot melt on carbon. Get any one of those four wrong and the shaft can still look fine while carrying a hairline crack or an off-axis point that only shows up as a bad group or, worse, a failure at full draw.
None of this is guesswork dressed up as a rule. Every step below traces back to Easton's official Arrow Assembly Guide (PDF) or to a mechanism you can reason through yourself — composite fiber under a pinching or tearing load behaves nothing like a length of aluminum tube.
Myth: Acetone is a fine, fast way to strip cutting dust and old glue residue out of a shaft before bonding.
Reality: Acetone is a solvent for the epoxy resin binder itself — the matrix holding the carbon fiber layers together, not just surface grime.
A shaft interior that's been wiped with acetone, MEK or lacquer thinner can end up with softened or lifted resin right where an insert or bushing needs a solid bond. Easton's own assembly documentation names all three solvents directly and rules them out — the failure mode isn't cosmetic, it's a shaft that can let go under the sudden load of a shot instead of behaving like a dry-fire. The fix is the one-ingredient version most forum threads skip past: 91%-or-higher isopropyl alcohol on a cotton swab, nothing stronger, dried fully before anything gets bonded in.
Why Does the Cutting Tool Matter So Much on a Carbon Shaft?

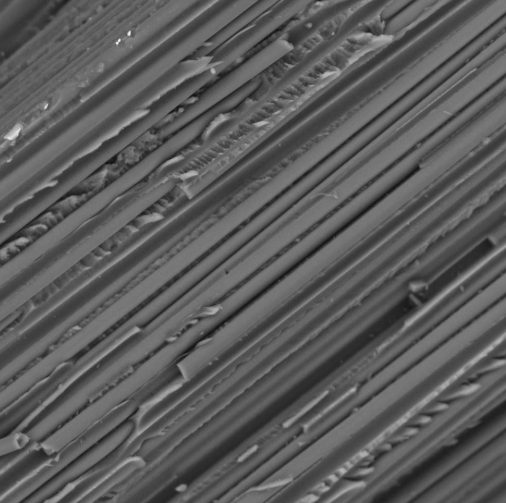

A carbon arrow shaft is a filament-wound composite tube — layers of carbon fiber locked into a cured epoxy resin matrix, not a single homogeneous material the way an aluminum shaft is. A clean cut has to separate that matrix without tearing the fiber layers apart from the resin around them, which is a completely different mechanical problem than parting a metal tube.
An abrasive wheel handles it correctly: it grinds a thin kerf away, fiber and resin together, the same way a diamond blade cuts tile instead of splitting it. A toothed hacksaw blade does the opposite — its teeth snag individual fibers and rip them out of the resin instead of shearing them, which is exactly why Easton tells you outright: "Never use rotary tube cutters, hack saws or other methods that can damage the shaft or leave a rough cut."
The dust from that grinding is fine enough to get deep into your lungs, and Easton's own guide is direct about it: "Always wear a NIOSH approved dust mask and safety glasses when cutting arrow shafts." If you're cutting more than the occasional shaft — building a dozen arrows for a season, say — a fitted N95, or a P100 for extended sessions, is a more realistic baseline than the flat paper mask bundled with a lot of home arrow-cutting jigs. OSHA's 29 CFR 1910.134 respiratory protection standard is the general framework that governs when and how a respirator actually protects you, and it's worth a skim before you treat any dust mask as automatically adequate.
Which Tool Should You Actually Use to Cut a Carbon Arrow?
Four tools show up constantly in DIY arrow-building threads. Only one of them is purpose-built for a composite tube — the table below is the whole decision in one look.
| Criteria | Dedicated Arrow Saw | Rotary Tool + Cutoff Wheel + Jig | Hacksaw | Pipe / Tubing Cutter |
|---|---|---|---|---|
| Best For | Regular builders cutting several shafts to a matched length | Occasional or one-off cuts | Nothing on carbon — emergency field trims at most | Nothing on carbon — this is a metal-tube tool |
| Cut Mechanism | Fixed abrasive wheel, shaft supported and rotated into it | Hand-held abrasive wheel, shaft braced in a cradle | Toothed blade dragged back and forth | Wheel that pinches inward as it's rotated around the tube |
| Typical Result | Clean, repeatable, near-perpendicular | Decent if braced and not rushed — still needs squaring | Torn, frayed fiber; almost never square | Crushed, out-of-round wall |
| Fiber Damage Risk | Lowest — this is what the tool is designed to do | Moderate — rises fast if you push instead of rotate | High — Easton names this tool specifically as unsafe | Highest — radial pinch can crack the wall outright |
| Where to Get One | Check on amazon.com → | Check on amazon.com → | Check on amazon.com → | Check on amazon.com → |
Grounded in Easton's own cutting-tool guidance and the basic mechanics of how each tool applies force to a composite tube — not a scraped product-review aggregate.
Under the Microscope: Why a Pipe Cutter and a Slow Wheel Actually Fail

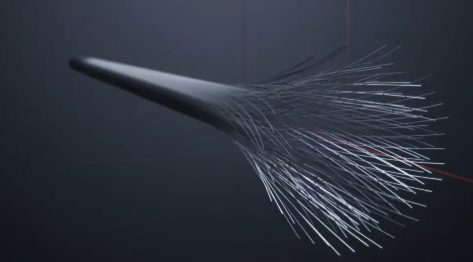

Most guides stop at "don't use a pipe cutter or a hacksaw" and leave it there. The mechanism is worth spelling out, because it's the same mechanism in both cases — a composite wall failing at the fiber level, not just at the surface you can see.
Cutting a carbon shaft doesn't just change its length — it stiffens the shaft's dynamic spine, because a shorter beam flexes less under the same load. Drag the slider for a directional read. This is a light preview; the full Simulation Lab tool below accounts for your actual peak weight, cam type and point weight.
This only shows direction and rough scale — it isn't tied to your bow's peak weight, cam or point weight. Run the Full Spine & Flex Analysis →
Step-by-Step: How Do You Cut a Carbon Arrow to the Right Length?
Step 1 — Measure and Mark From the Nock End Forward
Before you mark anything, nail down your actual draw length — arrow length gets derived from that, not guessed at separately. If you haven't measured it against your own bow yet, run it through the Draw Length Calculator first.

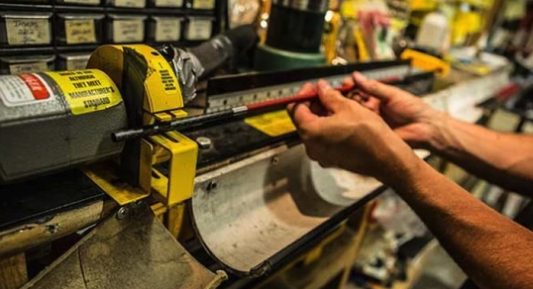

Fit the nock system temporarily onto a full-length shaft, set the arrow against your actual rest, and mark the cutoff point from there. Easton's own definition of arrow length is measured "from the bottom of the nock groove to the end of the shaft," which is exactly why you cut from the front, at the point end — the nock groove at the back stays exactly as the factory finished it.
Length isn't the only thing riding on this cut, either. Shortening a shaft measurably stiffens its dynamic spine, so if you're trimming more than a fraction of an inch, run the new length back through the Dynamic Spine & Shaft Flex Calculator or the full breakdown on Arrow Length vs Draw Length before you commit to the cut.
Step 2 — Cut With a High-Speed Abrasive Wheel, Rotating as You Go
Set the shaft support so the wheel only bites about a third of the way through the diameter on the first pass. Then rotate the shaft — in the same direction the wheel is spinning — for two more complete revolutions to finish a clean, square cut. Forcing the shaft straight through in one push is how you get the chipped, angled face this whole guide is trying to help you avoid.
Step 3 — Chamfer and Square the Cut Face
How much you chamfer depends on the shaft type, and this is a step where guessing wrong actually matters. Internal-component carbon shafts want little to no interior deburring — over-chamfering there just removes bonding surface. Shafts built for external components get a light outside chamfer instead: about three full revolutions against 180- or 240-grit sandpaper or a recessed grinding stone on the cutoff tool is what Easton specifies.
Whichever type you're working with, check the face for square before you bond anything to it. A face that's off by a few thousandths of an inch is nearly invisible to the eye, and it's also exactly the kind of defect the Broadhead Flight & Tuning Stability Checker is built to catch downstream, once it shows up as inconsistent flight instead of a bad cut.
Step 4 — Clean the Shaft Interior With Isopropyl Alcohol Only
Swab the cut end with 91%-or-higher isopropyl alcohol on a cotton swab to clear cutting dust, then let it dry completely before you glue anything. Easton's assembly guide is specific about what not to reach for here: acetone, MEK and lacquer thinner can pool between an installed nock or bushing and the shaft wall, and trapped solvent vapor has been linked to polycarbonate nocks fracturing on release. Skip the risk entirely and stick to isopropyl.
Step 5 — Bond the Insert and Run the Acoustic Drop Test
Carbon shafts want a two-part, flexible 24-hour-cure epoxy — not hot melt, which Easton rules out for carbon specifically because it can't flex with the shaft under load the way epoxy does. Full details on picking and applying the right adhesive for your shaft type are in Best Glue for Arrow Inserts.
Once the epoxy cures, drop the finished arrow vertically onto a hard-carpeted floor. A clean, dead thud means the insert is fully seated and bonded. A metallic rattle or ring means it isn't — pull it, re-clean with isopropyl alcohol, and rebond before you ever nock that arrow.
Most home builds get an eyeball check after gluing and stop there. A better check costs nothing and takes five seconds: once the epoxy has cured, drop the finished arrow point-down onto a hard-carpeted floor or a bare wood surface from a foot or so up.
A tok, dead thud with no ring to it means the insert is fully seated and the bond has no voids. A tinny rattle, buzz or ringing tone means one of two things — the insert isn't fully seated in the epoxy, or the shaft's inner wall picked up a hairline crack somewhere along the way. Either way, that's an arrow to pull apart and redo, not one to nock and hope.
Shortening a shaft doesn't only change its length — it also stiffens its dynamic spine, roughly by the equivalent of a few pounds of bow weight for every inch removed from the front. That's a side effect of cutting, not a separate step, and it's easy to miss if length is the only number you're tracking.
Treat any cut past a fraction of an inch as a reason to re-check your spine match, not just your arrow length. Use the directional slider higher up this guide for a quick read, then run your actual peak weight, cam type, point weight and new cut length through the Dynamic Spine & Shaft Flex Calculator before you commit to shooting the trimmed arrow.
Something's Off After Cutting — How Do You Diagnose It?
Most post-cut problems trace back to one of the same three or four root causes. Run through this before assuming it's your form.
| Symptom | Likely Cause | Fix |
|---|---|---|
| Insert rattles on the drop test | Epoxy didn't fully wet the wall, or the shaft wasn't dry before bonding | Remove the insert, re-clean with isopropyl alcohol only, dry fully, rebond with fresh epoxy |

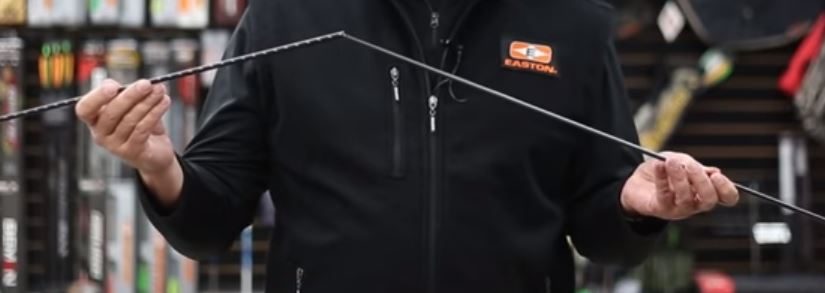

| Shaft flexes or creaks when hand-bent | Wall damage from an unsquare, crushed or torn cut | Retire the shaft — Easton's own inspection method treats this as a do-not-shoot condition, not a cosmetic issue |
| Groups open up right after a cut-and-glue session | Off-axis insert seated on an unsquared face | Square remaining shafts before bonding; an already-bonded off-axis insert usually means re-doing that arrow |
| Point visibly wobbles on an arrow spinner | Point not seated flush against an unsquare face | Re-face the shaft end and remount the point |
Myth: A cut that's slightly off-square is a cosmetic issue you can shoot through and tune around.
Reality: An off-axis point changes where the arrow's mass sits relative to its spin axis, which is a front-of-center and dynamic-spine problem wearing the disguise of a tuning problem.
Threads across DIY arrow-building forums repeat the same pattern: someone chases fletching, rest position or release form for weeks before finally checking the shaft itself and finding an unsquared cut underneath a glued-in point. Squaring the face takes under a minute with the right tool. Chasing a phantom tuning issue does not.
⚠️ When Not to DIY-Cut a Carbon ShaftAvoid If: you don't have a NIOSH-rated dust mask on hand, you're working with a shaft that already shows surface damage, or you have no way to check the face for square afterward. A shaft that's already compromised or gets compounded by a bad cut can fail catastrophically at full draw — this isn't a step worth rushing to save a trip to a shop that has a proper arrow saw already set up.
Frequently Asked Questions
Can you cut carbon arrows at home safely without an arrow saw?
Yes, if you swap the same logic onto a rotary tool. A dedicated arrow saw supports the shaft on both sides of the cut and drives a thin abrasive wheel through it in one continuous pass; a hand-held rotary tool with a cutoff-wheel attachment and a shaft cradle can approximate that, but you lose the saw's built-in perpendicular reference. Wear a NIOSH-rated dust mask and safety glasses either way, and square the face afterward no matter which tool made the cut.
Can I cut carbon arrows with a tubing or pipe cutter?
No. A pipe cutter closes around the tube with a wheel that pinches inward as it turns, which is built to score and snap ductile metal, not shear through a carbon-fiber-and-epoxy matrix. That radial squeeze is enough to crack the wall or crush the cut face out of round, and no amount of squaring fixes a crushed wall afterward.
How do you cut carbon arrows with a Dremel tool?

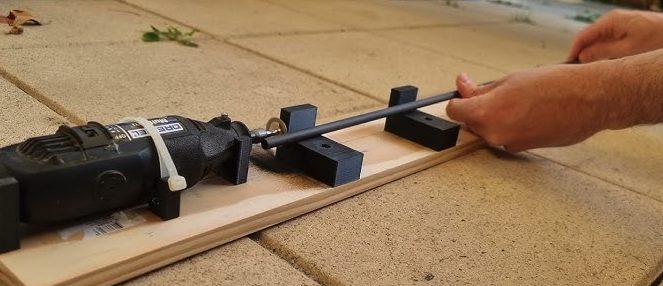

Chuck an abrasive cutoff wheel — not a toothed bit — into the tool, clamp the shaft in a cradle so it can't spin freely, and let the wheel do the cutting instead of forcing the shaft into it. Easton's own method for its cutoff tool calls for cutting about a third of the way through, then rotating the shaft to finish; the same rotate-don't-force approach carries over directly to a Dremel-style setup.
Should carbon arrows be cut from the front or the back (nock end)?
From the front, at the point end. Easton's length-measurement method has you temporarily fit the nock system, mark the cutoff point against your rest, and cut forward from there — leaving the factory-finished nock groove at the back untouched. Cutting from the nock end means re-cutting a nock taper yourself, which most home setups can't square back up reliably.
What happens if you don't square the arrow shaft after cutting (ASD tool)?
An unsquared face is rarely visibly crooked, which is what makes it risky — a few thousandths of an inch of tilt is enough to seat the point or insert off-axis. That throws the arrow's front-of-center balance and spin slightly out of true, and it shows up downrange as inconsistent grouping that gets blamed on form or tune instead of the shaft itself.
Is acetone safe for cleaning carbon arrow shafts?
No. Easton's own assembly documentation specifically warns against acetone, MEK and lacquer thinner on carbon and aluminum/carbon shafts, since those solvents can pool between an installed nock or bushing and the shaft wall. Use 91%-or-higher isopropyl alcohol on a cotton swab instead, and let the shaft dry fully before bonding anything.
Our Final Take: There's nothing exotic about cutting a carbon shaft correctly — it's an abrasive wheel, a NIOSH mask, a squared face, isopropyl alcohol and a two-part epoxy, in that order. Every one of those five choices traces back to Easton's own assembly documentation, not a forum guess.
👉 Recommendation: Building more than a couple of arrows a season? A dedicated arrow saw pays for itself in consistency alone. Cutting one or two shafts? A rotary tool with a cutoff wheel and a shaft cradle gets you there — just don't skip the squaring step, and never reach for a hacksaw or a pipe cutter no matter how tempting the shortcut looks.
