Mechanical vs. Fixed Broadheads

If your setup produces less than roughly 65 ft-lbs of kinetic energy and 0.40 slug-ft/s of momentum, or you expect a shot angle likely to contact heavy bone — a quartering-to elk shoulder being the textbook case — the synthesized data below points to a fixed blade. Above that energy floor, on broadside shots through soft tissue, a 2″+ mechanical is reported to open a wider wound channel and, per a cited Maryland deer study, a measurably higher hunter-reported recovery rate. Neither category is universally correct; the physics of blade deployment and bone contact are what actually decide it, not brand loyalty.

What's the 1-Minute Answer — Mechanical or Fixed for Your Setup?

Work down this matrix before reading further — it's the condensed version of everything documented in the rest of this report, built from the same synthesized forum and engineering-spec research.

How Was This Broadhead Data Actually Synthesized?

Every claim in this report is built from three source types, cross-referenced against each other rather than taken at face value from any single one: long-running forum threads and field reports on ArcheryTalk, Rokslide and Bowsite; published manufacturer engineering specs for cut diameter, blade steel and thickness; and standardized penetration research from bowhunting physics researchers, most notably Dr. Ed Ashby's published momentum work.

None of this is presented as personal hands-on testing — it's a structured synthesis of what thousands of hunters and the manufacturers themselves have already documented, organized into the matrices and figures below so you don't have to read 10,000 threads yourself.

What Do Kinetic Energy and Momentum Actually Determine in Broadhead Selection?

Two numbers govern almost every broadhead decision in this report: kinetic energy (KE, in ft-lbs) and momentum (in slug-ft/s). KE is calculated as Weight(grains) × Velocity(fps)² ÷ 450,240, and momentum as Weight(grains) × Velocity(fps) ÷ 225,218. KE describes the total work the arrow can do; momentum describes its ability to keep driving forward through resistance without losing velocity — which is why bowhunting physics researcher Dr. Ed Ashby argued momentum, not KE alone, is the better predictor of raw penetration in his momentum and arrow-penetration research published via TradGang. The Ashby Bowhunting Foundation's own FAQ expands on that position further, and community write-ups on building a hunting arrow around its momentum "slug" value walk through the practical build-side implications for anyone assembling their own broadhead-tipped arrows.

A fixed blade spends none of that energy budget on anything but cutting resistance: entry-hole drag, hide, cartilage and bone. A mechanical blade spends a measurable slice of it pivoting the blades open against spring or O-ring resistance before cutting even begins — and if the angle of attack is steep or the animal's hide absorbs enough of that initial force, deployment can stall out entirely. That single difference is the physical root of almost every trade-off in this guide.

Ranges compiled from the widely circulated Easton-style kinetic energy chart and Grit Outdoors's own "Tony-MO" momentum table breakdown. Treat these as community reference ranges, not hard physical cutoffs — individual sources vary by several ft-lbs at each boundary.

Broadhead vs. Bow Spec Matrix: What KE and Momentum Does Your Draw Weight Actually Produce?

Every threshold above assumes a known kinetic energy and momentum number, but most hunters only know their draw weight and draw length. The matrix below runs eight common compound bow specs through the same speed-adjustment methodology published on ArcheryEra's own Arrow Speed & Performance Calculator — a 300 fps ATA-baseline reference bow (the 70 lb / 30″ / 350gr test condition cited above), adjusted ±2 fps per pound of draw weight and ±10 fps per inch of draw length — paired with a 6.5 grains-per-pound hunting-weight arrow, roughly 1.5 gr/lb above the 5 GPP manufacturer safety floor. The result is converted to kinetic energy and momentum with the same formulas defined earlier in this report.

Computed by ArcheryEra from a 300 fps ATA-baseline reference bow and the same ±2 fps/lb, ±10 fps/in adjustment rule published on the Arrow Speed & Performance Calculator, paired with a 6.5 GPP reference arrow at each spec. Real chronographed speed varies by cam system, string weight and let-off — treat this as a planning reference, not a guarantee for any specific bow. The Iron Will v100 has no single matching Amazon listing at time of writing, so its button routes to an Amazon search instead of one specific SKU.

What Is the Best Mechanical Broadhead for a 60 lb Compound Bow at 28-Inch Draw?

A 60 lb compound at a 28″ draw with a 390-grain (6.5 GPP) hunting arrow computes to roughly 46 ft-lbs of kinetic energy and 0.398 slug-ft/s of momentum — comfortably above the deer-class floor and right at the 0.40 slug-ft/s elk-class threshold cited earlier in this report. For broadside whitetail-class shots at this spec, a 2″-class mechanical sits inside the supported range. For elk-class game or any shot likely to contact heavy bone at this exact spec, the thin margin above the mechanical threshold pushes the synthesized data toward a fixed blade instead.

Where Do Mechanical and Fixed Broadheads Actually Fail?

No broadhead category is failure-proof. The synthesized field reports below aren't a formal statistical study — no public database tracks broadhead failure rates with hard percentages — but the same handful of failure modes come up so consistently across thousands of threads that the pattern itself is the data point.

Wind-planing and fishtailing shows up almost entirely on the fixed-blade side of that table, and it's a spine-and-offset problem that a field-point-only paper tune will not catch. If broadheads alone are fishtailing on you, run your setup through the Broadhead Flight & Tuning Stability Checker before assuming the head itself is bad.

What Actually Happens When a Broadhead Hits the Scapula or Humerus?

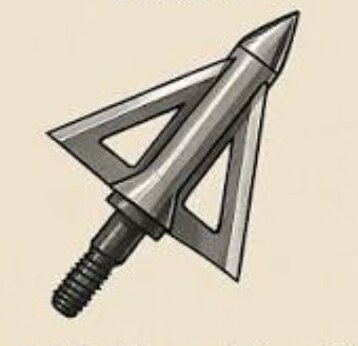

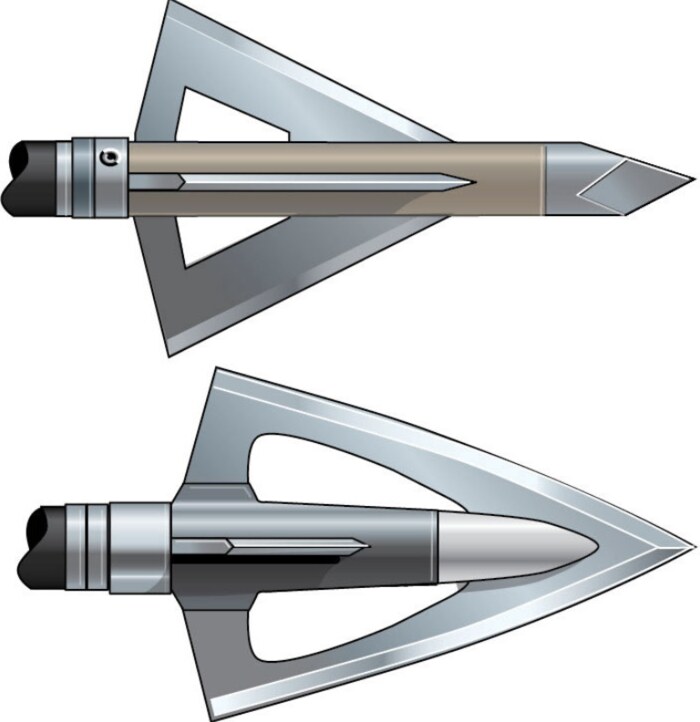

A rigid one-piece or double-bevel fixed blade tends to hold its edge geometry on contact with bone, continuing to cut along roughly the same line it was already traveling — the reason hunters describe fixed blades as more likely to "split" a scapula or leg bone rather than stop at it.

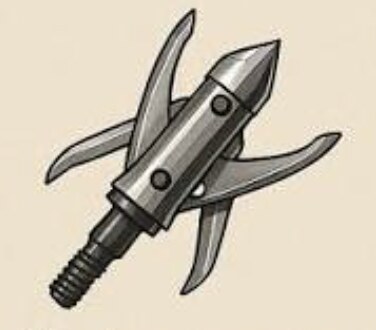

A mechanical's hinge is a built-in weak point that a fixed blade simply doesn't have. Under a hard bone impact, the pivoting blade can bend, shear at the rivet, or fold back against the ferrule instead of continuing to cut, and the deployment mechanism itself may never fully open if the bone contact happens before the blades finish swinging out. Neither failure mode is guaranteed — shot angle, arrow momentum and exact bone location all change the odds — but the mechanical disadvantage on bone specifically is one of the most consistent findings across the sources reviewed for this report.

Burak still thinks like the mechanical engineer he trained as: a hinge in a force path is a stress concentrator before it's ever a feature. He remembers a hunting buddy's rear-deploy head folding flat against a shoulder blade on a marginal-angle shot years back — the arrow never made it past the bone, and camp talk that night had less to do with brand loyalty and more with where energy actually goes when a blade has to move before it can cut.

Here's the opinion behind the data: the failure-to-deploy number is the one that should actually move a buying decision, more than raw cutting diameter ever should. A broadhead that never opens is a worse outcome in the field than one that opens a little narrower than advertised.

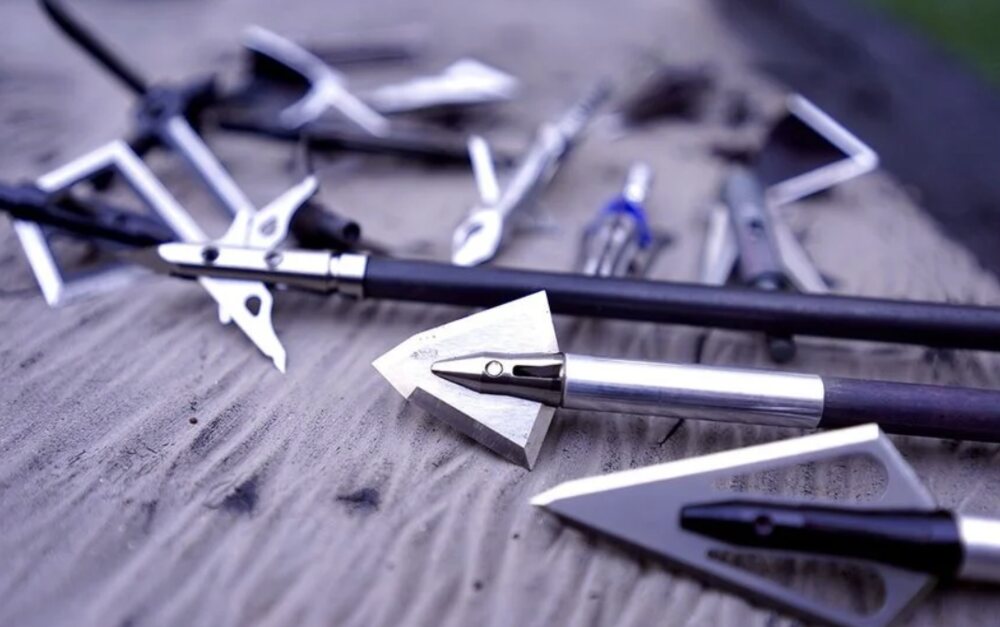

How Do Six Leading Broadheads Compare Spec for Spec?

Real published engineering specs for three widely discussed fixed blades and three widely discussed mechanicals, pulled directly from manufacturer product pages rather than marketing copy.

Specs sourced directly from Iron Will Outfitters, Slick Trick, QAD (via retailer listing), Feradyne / Rage, Lancaster Archery / Grim Reaper, and SEVR product pages, cross-checked against an independent SEVR Titanium 2.0 field review since SEVR's own listing doesn't publish blade thickness. QAD's own site blocks automated access; the swept/full-blade specs above come from an authorized retailer's product listing instead.

How Should You Actually Choose Between Fixed and Mechanical?

Work through these in order — each one either confirms or overrides the answer from the step before it.

1. Step 1 — Calculate your actual kinetic energy and momentumWeigh your finished arrow (grains) and chronograph its speed (fps), then run both through the formulas above or ArcheryEra's own Energy & Momentum calculator. Guessing from the bow's rated speed alone overstates real arrow performance almost every time.
2. Step 2 — Compare that number against your target game's thresholdUse the game-class table above. If you're below roughly 42 ft-lbs for elk-class game or 25 ft-lbs for deer-class game, fix the arrow build (more front-of-center, less total drag, or more draw weight) before worrying about broadhead type at all.
3. Step 3 — Estimate your realistic shot angleTreestand hunters taking mostly steep-quartering shots into the vitals face more incidental bone contact risk than ground-blind hunters taking level broadside shots. Be honest about which one you actually take most often.
4. Step 4 — Weigh total arrow weight (TAW) and FOC against the broadhead's own weightA heavier front-of-center point improves penetration and flight stability regardless of broadhead type, but it also shifts your finished arrow's total weight and spine requirement — run the numbers again after picking a broadhead weight, not before.
5. Step 5 — Make the callLow energy, likely bone contact, or elk-class game: fixed blade. Adequate-to-high energy, broadside shots, deer-class game, and you want maximum blood trail: mechanical. When the answer is genuinely split, the synthesized field data favors erring fixed — a narrower cut on a clean hit beats a wider cut that never opens.

So Which Broadhead Should You Actually Shoot?

If you're chasing whitetail or similar deer-class game with a modern compound producing adequate kinetic energy and taking mostly broadside shots, the synthesized field data mildly favors a mechanical for the wider wound channel and the recovery-rate edge in the cited Maryland study. If you're chasing elk, moose or anything where a quartering shot into heavy bone is a real possibility, or your setup sits below roughly 65 ft-lbs of kinetic energy, the same data points toward a fixed blade as the more conservative, more consistently reliable choice.

Neither category is obsolete. Neither is inherently superior, either — six real product lines above prove both fixed and mechanical designs are still being actively engineered and refined around exactly this trade-off. Build your arrow's numbers first. Then let those numbers make the broadhead decision, not forum brand loyalty.
