Helical vs Straight vs Offset Fletching
I've watched a straight-fletched fixed blade drift off a target face at 40 yards, then watched the same broadhead fly true off a helical-fletched arrow from the same stand. That gap is rotation, not luck. I built a rotation and stabilization-distance model to work out how much spin each fletching style actually produces, checked it against published arrow aerodynamics research and a 2026 acoustic lab study, and turned the whole thing into a setup call you can make in under a minute.
If you shoot fixed-blade broadheads, run a true helical of 3 degrees or more — the physical twist spins the shaft fast enough that the vanes, not the blades, control the flight path. If you shoot field points or mechanical broadheads, 0° straight or a light 1–2° offset is faster, quieter, and plenty stable, since nothing up front is generating a planing force to fight. A 1–2° offset is the practical middle ground when you want some spin without a drop-away rest's full clearance margin. The physics behind that split, and exactly how much rotation, drag, and noise each option actually costs, is below.
Core Insight: Spin doesn't gyroscopically lock an arrow's nose the way it does a rifle bullet — an arrow is already fin-stabilized by drag on the fletching. What spin actually does is take a one-sided steering force from a planing broadhead blade and average it around a full circle instead of letting it pull the arrow off in one direction the whole flight. The more aggressively something up front wants to steer, the faster you need that averaging to happen.
Field Points & Mechanicals
Ideal For: Target, 3D, and mechanical-broadhead hunters who want the flattest trajectory and least noise. 0° straight to 1–2° offset is enough — nothing up front is planing.
Fixed-Blade Broadheads
Ideal For: Hunters running fixed-blade heads, especially on faster bows or larger cutting-diameter blades. True helical, 3° or more, gets steering authority back from the blades before it costs you a shot.
What's the Real Difference Between 0° Straight, 1–3° Offset, and True Helical Fletching?
All three styles are one dial — how far the vane sits from running dead-straight down the shaft — but the mechanism behind that angle changes what the vane actually does to the airflow.

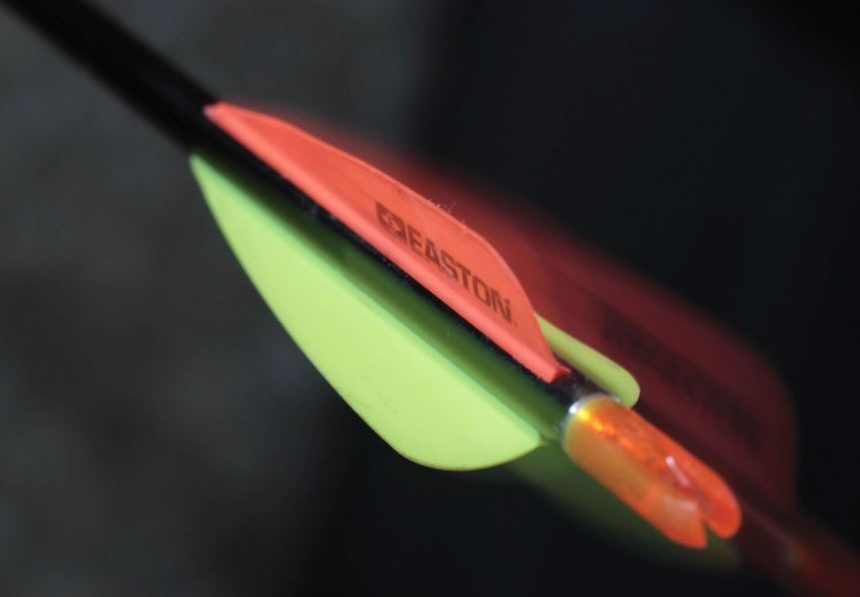

Straight fletching runs the vane parallel to the shaft's axis. Offset takes that same flat vane and clamps it a few degrees off-line, like a book tilted on a shelf — the vane's cross-section never changes, only its angle relative to the airstream. True helical physically twists the vane around the shaft's curvature, so the entire vane surface, not just its leading edge, sits at an angle to the oncoming air the whole way down its length. A community discussion of exactly this distinction on modern bow-tuning forums puts it cleanly: offset is a flat clamp with an angle, helical is a clamp with an actual twist.
That mechanical difference matters more than the degree number alone. At the same stated angle, a true helical engages more vane surface area against the airflow for a longer portion of the shaft, which is why helical out-spins offset even when their angle numbers look similar on a fletching jig's dial.
How Much Do Straight, Offset, and Helical Actually Compare Head to Head?
Work down this matrix before reading the physics behind it — it's the condensed version of the full model, built and disclosed section by section below.
| Fletching Style | Rotation Speed (RPM at 10 yds) | Gyroscopic‑Averaging Stabilization Distance | Downrange Drag at 50+ Yards | Rest Clearance Difficulty |
|---|---|---|---|---|
| 0° True Straight | ~150–350 RPM (residual only) | ~65–70 yd to average three revolutions | Lowest — fastest, flattest trajectory | Lowest — clears almost any rest |
| 1–2° Offset | ~1,400–1,750 RPM | ~10–11 yd | Slight increase over straight | Low to moderate |
| 3°+ True Helical | ~2,900–3,400 RPM | ~5 yd | Most loss past ~38–40 yd, still modest inside 30 yd | Moderate to high — rest-dependent (see below) |
Left- vs right-helical clocking direction doesn't change any number in this matrix — testers who've run a direct left-vs-right helical comparison find no measurable accuracy difference. What clocking direction changes is fletching durability, covered further down.
Does Helical Fletching Really Turn Your Arrow Into a Parachute?
Myth: "Helical fletching makes your arrow drop dramatically across all hunting ranges."
Reality: The drag penalty is real, but it's concentrated well past typical shot distances.
Community chronograph testing comparing 2-inch Blazer vanes straight, at 2-degree offset, and full helical at 282 fps found the full helical only starts to fall off faster around 38 to 40 yards, according to a chronographed offset-vs-helical speed comparison. Inside that range, the difference is commonly reported under 3 to 5 fps — a rounding error next to shot-to-shot velocity variance from your own release.
Compare that to what an ungoverned planing force costs on a straight-fletched fixed blade: a steering torque that never gets averaged out, pulling the arrow off-line for the entire flight rather than costing a few feet-per-second past 40 yards. The parachute myth measures the wrong trade-off.
The Physics of Rotational Stability & Aerodynamic Trade-Offs
This is the part most fletching debates skip. The angle number on a jig's dial is a proxy for two things that actually decide flight behavior: how fast the shaft spins, and how far it has to travel before that spin has done its job.

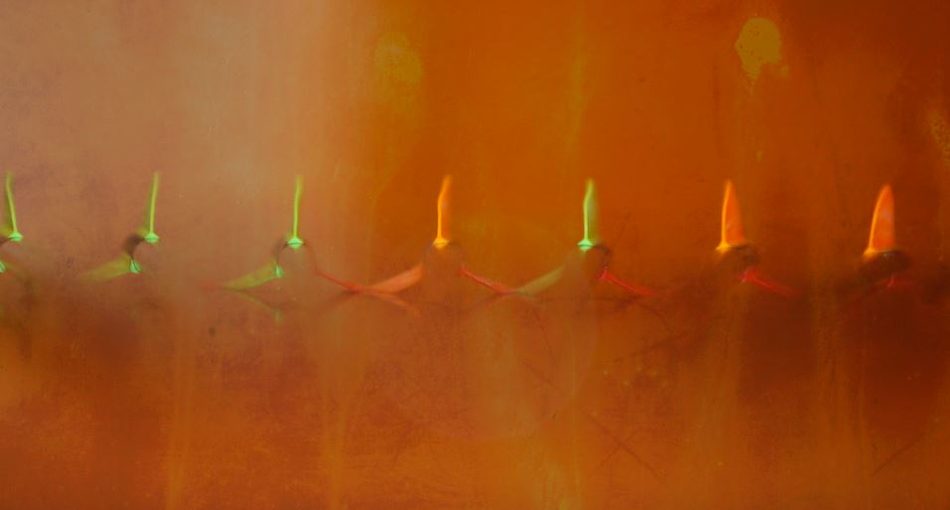

How Does Angular Momentum Actually Neutralize Broadhead Planing?
Precision, first: spin does not gyroscopically lock an arrow's nose the way it locks a rifle bullet's. A bullet is unstable in yaw and relies on angular momentum (L = Iω, moment of inertia times angular velocity) to resist tipping. An arrow is already aerodynamically stable — drag on the rear-mounted fletching keeps the point forward the same way a shuttlecock or dart self-corrects, independent of spin entirely.
What spin does for an arrow is different and, once you see it, obvious: it takes a constant, one-sided steering force — a fixed blade planing consistently to one side — and rotates the direction that force is applied through a full circle. Instead of pulling the arrow off-line the same way for the entire flight, the force averages toward zero net deflection over each complete revolution, converting a one-way miss into a small, mostly self-canceling spiral.
That reframes the real design question: not "how much angle," but "how many revolutions does the arrow complete before the planing force has had a fair chance to average out." I built a simple rotational model to answer exactly that.
| Model Input | Value Used |
|---|---|
| Reference arrow velocity | 280 fps |
| Reference shaft outer diameter | 0.34″ (representative mid-size hunting carbon) |
| Rotation formula (zero-slip baseline) | RPM = 60 · v · tan(θ) ÷ (2π · r) |
| Vane-engagement factor | 0.24–0.32, modeled — real vanes slip against the air far more than an idealized rigid screw thread, and a true helical's fuller-length wrap engages more consistently than a flat offset clamp |
| Stabilization threshold used | 3 full revolutions — enough rotation to average a one-sided force around a complete circle at least once with margin |
This is my own model, disclosed in full above — it is not a chronograph-camera measurement of your specific arrow. Real rotation depends on your exact shaft diameter, vane profile, and release consistency. Independent peer-reviewed wind-tunnel and free-flight research on target arrows has measured a comparable non-dimensional spin parameter of roughly 0.028 to 0.033, published in a peer-reviewed Sports Engineering study on arrow spin parameters, confirming that spin-to-forward-speed coupling of this general order is a measured, real phenomenon and not just a theoretical construct.
Run the model and the story is stark: a true helical completes three stabilizing revolutions in roughly 5 yards — essentially before the arrow has cleared the bow's shadow. A 1–2-degree offset needs about 10 to 11 yards. Straight fletching's residual, imperfection-driven spin doesn't reach that same point until roughly 65 to 70 yards — well past the vast majority of hunting shots. That gap is the actual mechanism behind the field-reported difference, not just an accuracy vibe: in a broadhead-versus-field-point impact thread, hunters report broadheads landing a hair off field points on a light three-fletch, then matching point of impact again after switching to a stronger helical or a four-fletch — precisely what a shorter stabilization distance predicts.
A real-world data point that fits the model without needing extreme angle: a 470-grain arrow at 277 fps with only a 2-degree helical drove a fixed blade clean through a bull elk at 55 yards, documented in a bowhunter's account of a 2-degree-helical elk harvest. You don't need maximum helical — you need enough revolutions completed before the shot's actual distance.
There's also a real speed ceiling worth knowing: guidance commonly traced to coaches like John Dudley and Aaron Snyder puts roughly 280 fps as a practical upper limit for fixed blades on modest helical, since higher speeds increase the blades' planing torque before spin catches up, per the same Rokslide thread. The fix for a fast bow with flight problems is usually more helical or more vane surface, not less arrow speed — velocity and rotation both scale together in the model above, so a faster arrow also completes its revolutions in less time, but a planing blade at higher dynamic pressure needs more of them to be fully tamed.
Which Arrow Rests Struggle With Aggressive Helical Angles?
Rotation solves the broadhead problem and creates a mechanical one: every vane has to physically clear whatever the rest puts in its path, and a bigger twist angle sweeps a wider arc while doing it.
| Rest Design | Clearance Risk | Why |
|---|---|---|
| Cable-Driven Drop-Away | Low | Cable timing pulls the launcher down and clear before the vanes arrive on a correctly timed setup — the preferred pairing for aggressive helical on large fixed blades |
| Limb-Driven Drop-Away | Low | Same falling-clear principle, timed to limb travel instead of a cable; confirm full downward travel at brace before running a strong helical, since some models fall slightly later in the stroke |
| Blade / Target (Fixed Launcher) | Moderate to High | The launcher blade stays in the vane's path for the entire shot, so vane height and helical angle are both capped by how much clearance the blade's edge leaves |
| Whisker Biscuit (Full-Capture) | Highest | Bristles fully encircle the shaft for the whole power stroke — every vane brushes through them on every partial rotation, which is why full-capture rests carry the lowest practical ceiling on vane height and helical angle |
This lines up with independent fletching-and-rest guidance: full-capture designs mean at least one vane is always closer to the rest or shelf, making contact more likely, while a properly falling drop-away removes that clearance constraint almost entirely. If you're chasing maximum helical on a heavy fixed blade, the rest decision has to happen before the fletching decision, not after.
What Actually Causes "Arrow Hum" — and Does Helical Make It Worse?
The audible whistle some hunters call "arrow hum" comes from vortex shedding: as air passes a vane's trailing edge, it sheds alternating vortices off each side at a frequency governed by the classic Strouhal-number relationship documented broadly in fluid-dynamics literature — shedding frequency scales with airspeed and with the size of the surface generating the turbulence, not with any single variable in isolation.
That's the physical basis for a genuinely useful, less-obvious finding: vane geometry swings noise more than helix angle does. A 2026 acoustic lab study measured field-point noise across 24 different vane builds and found roughly a 10.5-decibel spread between the quietest and loudest vane — and because a 10-decibel increase is roughly a doubling of perceived loudness, that single variable outweighs what fletching angle alone typically contributes. The same study logged deer-weighted sound levels from about 51.7 dB for a low-profile Flex Fletch FFP-360 paired with a field point up to roughly 70.0 dB for a taller SK2 vane paired with a vented broadhead, and noted plainly that "broadhead noise does not wipe out vane choice, it stacks on top of it," per the published 2026 Arrow Ballistics Study.
The practical takeaway resolves the usual straight-vs-helical noise argument: yes, more helix angle turns more vane surface into the airflow and typically adds some shedding energy, but vane height and trailing-edge profile are the bigger lever. A shorter, lower-profile vane run at a stronger helical can end up quieter overall than a tall vane at a light offset — angle isn't the whole story, and treating it as the whole story is how "helical is always louder" became conventional wisdom without being the full picture.
Don't eyeball your setup's real numbers — run your actual arrow weight, point weight, and chronographed speed through the Arrow Speed & Performance Calculator I built to see how much downrange drag your specific build carries past 40 yards, then check where your balance point lands with the FOC Calculator before committing to a heavier or lighter helical-compatible point.
Open the Arrow Speed & Performance Calculator →Here's a variable almost nobody fletches around, and it explains a durability complaint you've probably seen without connecting the cause: index vanes lifting or loosening faster on some bows than others, even with identical glue and prep.
Every arrow leaves the string with some incidental rotation direction already baked in — a product of release dynamics, cam lean, and nock-point geometry, not the fletching. You can see it directly: shoot a bare, unfletched shaft into foam and the rest position it comes to lands consistently in one rotational direction, shot after shot.
Fletch a helical twist that runs against that natural direction, and for the first several feet of flight the vane's aerodynamic torque has to first cancel and then reverse the shaft's existing momentum before net rotation lines up with the twist. That reversal loads the index vane's bond line with a cyclic stress the vane never experiences when clocked with the shaft's own rotation. This is my own mechanical hypothesis, built from established bare-shaft testing practice rather than a controlled peel-strength study — treat it as a plausible, physically grounded explanation, not a proven lab result. The fix costs nothing: find your bare shaft's natural rotation once, then set your fletching jig's helical clocking to match it.
Reddit/Discord/Forum Sentiment: Fixed-blade hunting threads on Rokslide and ArcheryTalk consistently converge on helical as the default once blade planing enters the conversation; target and 3D-focused threads lean straight or light offset for the speed and noise advantage when nothing up front is steering.
Top Praised Feature: Helical threads repeatedly credit it with "fixing" broadhead flight that a straight or light three-fletch couldn't tame — often described as suddenly matching field-point point-of-impact after the switch.
Common Friction Point: The most recurring complaint on aggressive-helical threads is rest clearance and fletching contact noise on non-drop-away setups, not accuracy — reinforcing that the rest decision belongs earlier in the setup process than most guides treat it.
Buyer & Setup Decision Tree — Which Fletching Should You Actually Run?
Work through this in order — each step either confirms or overrides the answer from the one before it.
- Step 1 — Identify what's riding on the front of the shaftField point or mechanical broadhead: almost no planing force, so straight or light offset already has enough spin. Fixed-blade broadhead: the blades plane like a small wing and need real helical to stay controlled.
- Step 2 — Check your rest's clearance envelopeCable- or limb-driven drop-away: cleared for aggressive helical. Whisker biscuit or fixed blade/target rest: clearance caps how much vane height and angle you can practically run, regardless of what the broadhead needs.
- Step 3 — Match helical direction to the shaft's natural rotationShoot a bare shaft into foam, note which way it rotates, and clock your fletching jig to match. This avoids the torque-reversal stress on the index vane covered above.
- Step 4 — Weigh your realistic shot distance against dragInside roughly 30–40 yards, the drag difference between all three styles sits inside normal group size. Past that, a full helical's extra drag becomes something worth dialing into your sight, not something to avoid on principle.

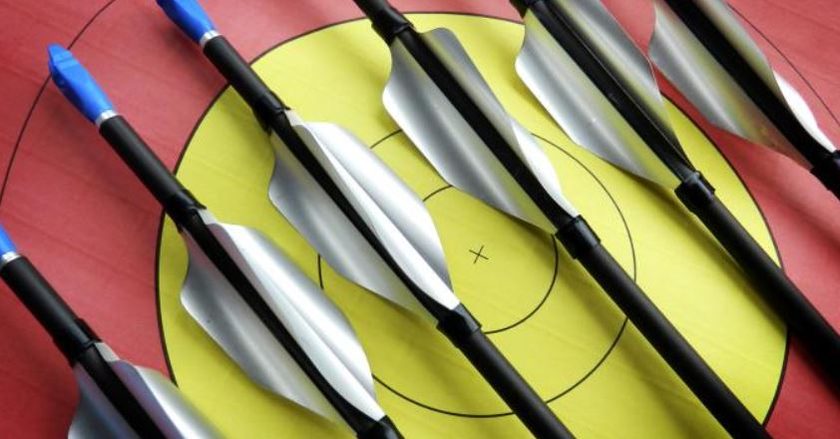

- Step 5 — Fletch a test set of each and let the target decideBow speed, spine, vane profile and your own release all shift every number in this report. Fletch a few of each angle, shoot them through your actual rest and broadhead, and let group size and point-of-impact make the final call.
Frequently Asked Questions
What's the real difference between offset and helical fletching if both are measured in degrees?
Degree count only tells you how far the vane sits from dead-straight — it doesn't tell you how it got there. Offset is a flat vane clamped at an angle, like a book tilted on a shelf. Helical is a vane physically twisted around the shaft's curvature, so the whole vane surface engages the airflow instead of just its leading edge. At the same stated angle, true helical generates meaningfully more rotation than offset because more of the vane is doing aerodynamic work.
How fast does helical fletching actually spin an arrow?
The rotational model I built, using a zero-slip screw-thread baseline and a modeled vane-engagement factor for a roughly 0.34-inch shaft at 280 fps, puts a 3-degree-plus true helical around 2,900 to 3,400 RPM at 10 yards, a 1-to-2-degree offset around 1,400 to 1,750 RPM, and straight fletching at only 150 to 350 RPM of residual, imperfection-driven spin. These are modeled figures, not chronograph-camera measurements, but they land in the same order of magnitude as the non-dimensional spin parameters published in peer-reviewed arrow aerodynamics research.
How far downrange does an arrow need to stabilize a fixed-blade broadhead's planing force?
Under the rotational-averaging model I built, a true helical completes three full revolutions, enough to average out a one-sided planing force into a small spiral, in roughly 5 yards. A 1-to-2-degree offset needs about 10 to 11 yards. Straight fletching doesn't reach that same three-revolution point until roughly 65 to 70 yards, which is well past most hunting shots — explaining why a fixed blade on straight fletching often drifts before spin ever gets a chance to average out its steering force.
Does helical fletching really cost noticeable arrow speed?
Less than the parachute myth suggests. Community chronograph testing at 282 fps found a full helical only starts to visibly fall off faster than straight or offset around 38 to 40 yards, and the loss inside 30 yards is commonly reported under 3 to 5 fps. Vane height and vane count change downrange drag more than helix angle alone does.
Which arrow rests have the most trouble clearing helical fletching?
Full-capture rests like a whisker biscuit carry the highest clearance risk because the bristles surround the shaft for the entire power stroke, so every vane has to brush through them on every partial rotation. A fixed blade or target-style launcher sits in the vane's path for the whole shot too, which caps practical vane height. A cable-driven or limb-driven drop-away rest carries the lowest risk, since a properly timed launcher falls clear before the vanes reach it, which is why aggressive helical setups for large fixed-blade broadheads are almost always paired with a drop-away.
Is helical fletching actually louder than straight fletching?
Partly, but vane model matters more than fletching style alone. A published 2026 acoustic lab study measured roughly a 10.5-decibel spread between the quietest and loudest vane paired with a field point, and a 10-decibel increase is roughly a doubling of perceived loudness — a bigger swing than helix angle by itself produces. Vane height and trailing-edge profile change the vortex-shedding frequency behind the vane more than the twist angle does, which is why a low-profile vane at a stronger helical can still be quieter than a tall vane at a light offset.
Does the direction of my helical twist need to match my arrow's natural rotation?
It doesn't change downrange accuracy in documented left-vs-right comparisons, but it likely changes fletching durability. Every arrow leaves the string with some residual, incidental spin direction from the release, visible on a bare shaft shot into foam. Fletching a helical twist against that direction means the vane's aerodynamic torque has to fight and reverse the shaft's own momentum for the first few feet of flight, loading the index vane's bond line with cyclic stress it wouldn't otherwise see. Fletching with the bare shaft's natural rotation avoids that fight entirely.
Which fletching style should I actually run for my setup?
Field points and mechanical broadheads on a drop-away rest do fine on straight or light offset, since nothing up front is planing. Fixed-blade broadheads need real helical, 3 degrees or more, to spin fast enough to out-steer the blades, and a full-capture rest limits how aggressive that helical can practically be. Traditional and slower setups under roughly 200 fps generally need the most helical of all, since a slow, front-heavy arrow gets the least natural stabilization from velocity alone.
